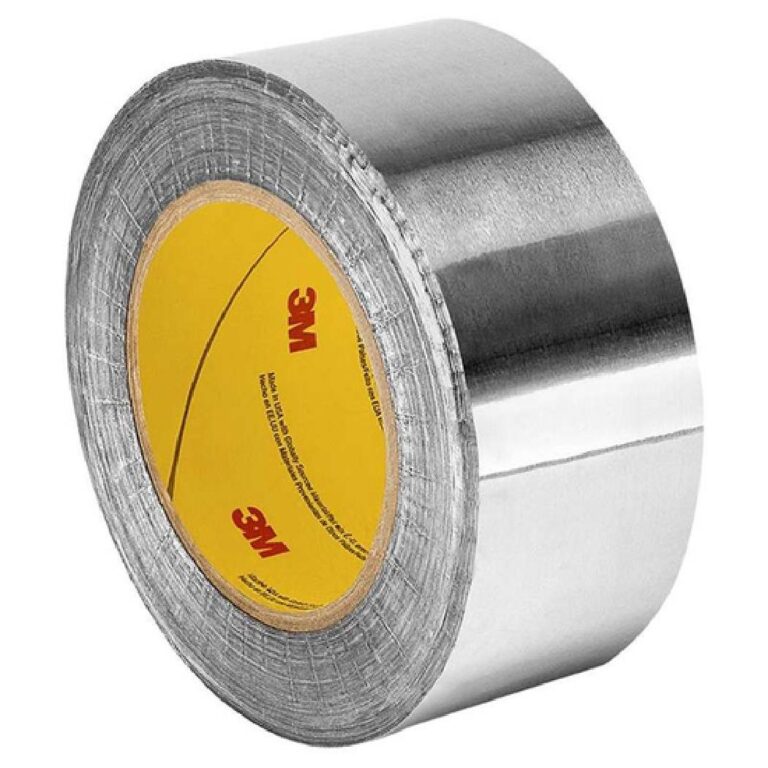

Product: 3M™ EMI Aluminum Foil Shielding Tape 1170
3M™ EMI Aluminum Foil Shielding Tape 1170
Highlights
- Unique adhesive creates secure contact with the application surface
- Suitable for EMI shielding, grounding and static charge draining
- Flame-retardant
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant
3M™ EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.
3M™ EMI Shielding Tape 1170 has aluminum foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This tape is designed for applications such as static charge draining, seaming shielded rooms, cable wrapping and providing surface contact to non solderable materials. Ideal for EMI shielding, grounding and static charge draining. UL Listed and RoHS 2011/65/EU Compliant.
| Adhesive Type | Acrylic, Conductive Acrylic |
|---|---|
| Backing (Carrier) Thickness (Imperial) | 2 mil |
| Backing (Carrier) Thickness (Metric) | 0.05 mm |
| Backing Material | Aluminum Foil |
| Brands | 3M™ |
| Elongation at Break | 5.0 % |
| Industries | Electronics |
| Maximum Operating Temperature (Celsius) | 130 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 266 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Overall Length (Imperial) | 18 yd |
| Overall Length (Metric) | 16.5 m |
| Overall Width (Imperial) | 0.62 in, 0.5 in, 1 in, 2 in, 0.375 in, 0.75 in, 0.25 in |
| Overall Width (Metric) | 15.75 mm, 12.7 mm, 25.4 mm, 50.8 mm, 9.525 mm, 19.05 mm, 6.35 mm |
| Primary Liner | Paper |
| Product Color | Silver |
| Rolls per Case | 9 , 24 , 12 , 36 |
| Shelf Life | 5 Year |
| Specifications Met | RoHS 2011/65/EU, UL Recognized |
| Tensile Strength (Imperial) | 20.0 lb/in |
| Tensile Strength (Metric) | 35 N/10mm |
| Total Tape Thickness without Liner (Imperial) | 3.2 mil, 2 mil |
| Total Tape Thickness without Liner (Metric) | 3.2 mm, 0.08 mm |
