Product: 3M™ Glass Cloth Electrical Tape 27

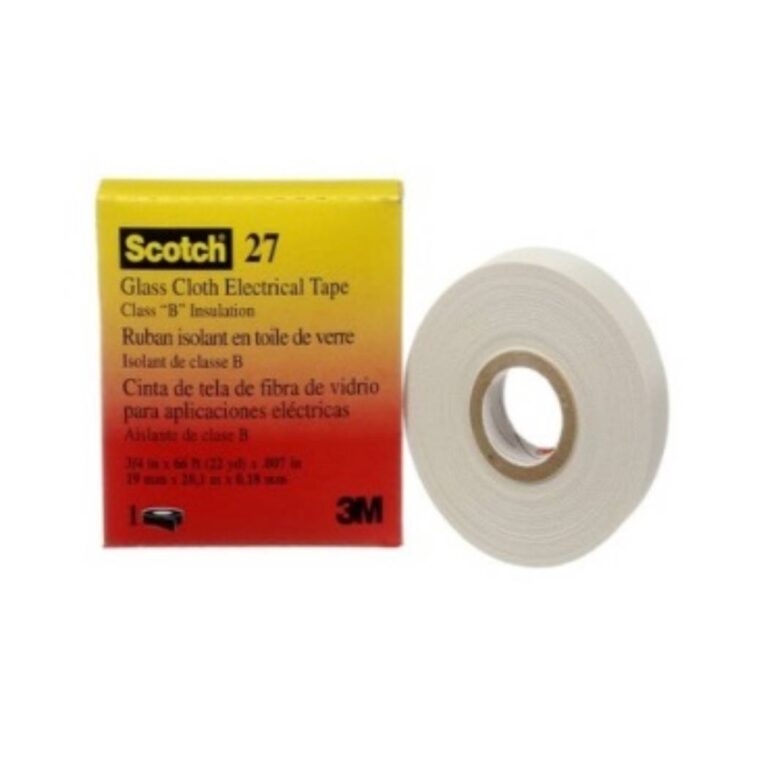

3M™ Glass Cloth Electrical Tape 27
Highlights
- 7-mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
- Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
- Adhesive is specially designed and prepared to provide corrosion protection
- Edge-tear resistant, conformable, and abrasion resistant
- For use as a coil cover, anchor, banding and core, layer and crossover insulation
- Printable
- UL Recognized
3M™ Glass Cloth Electrical Tape 27 is a 7 mil woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.
3M™ Glass Cloth Tape 27 is edge tear resistant, conformable, and abrasion resistant. For use as a coil cover, anchor, banding and core, layer and crossover insulation. UL Recognized. Printable.
| Adhesive Type | Rubber |
|---|---|
| Applications | Electrical Maintenance |
| Backing (Carrier) Material | Glass cloth |
| Backing (Carrier) Thickness (Metric) | 5 mm |
| Brands | 3M™ |
| Dielectric Strength | 3,000 V |
| Electrolytic Corrosion Factor | 0.9 |
| Elongation at Break | 5.0 % |
| Insulation Resistance | 4.8 x 10^4 megohms |
| Maximum Operating Temperature (Celsius) | 80 ℃, 150 ℃ |
| Minimum Operating Temperature (Celsius) | 0 ℃ |
| Overall Length (Metric) | 20.1 Metre, 54.8 Metre |
| Overall Width (Metric) | 12.7 mm, 19.05 mm, 25.4 mm, 38.1 mm, 9.53 mm, 6.35 mm, 616 mm |
| Product Colour | White |
| Tape Grade | Professional |
| Total Tape Thickness without Liner (metric) | 0.178 mm |
| Units per Case | 24.0,12.0,50.0,10.0 |
