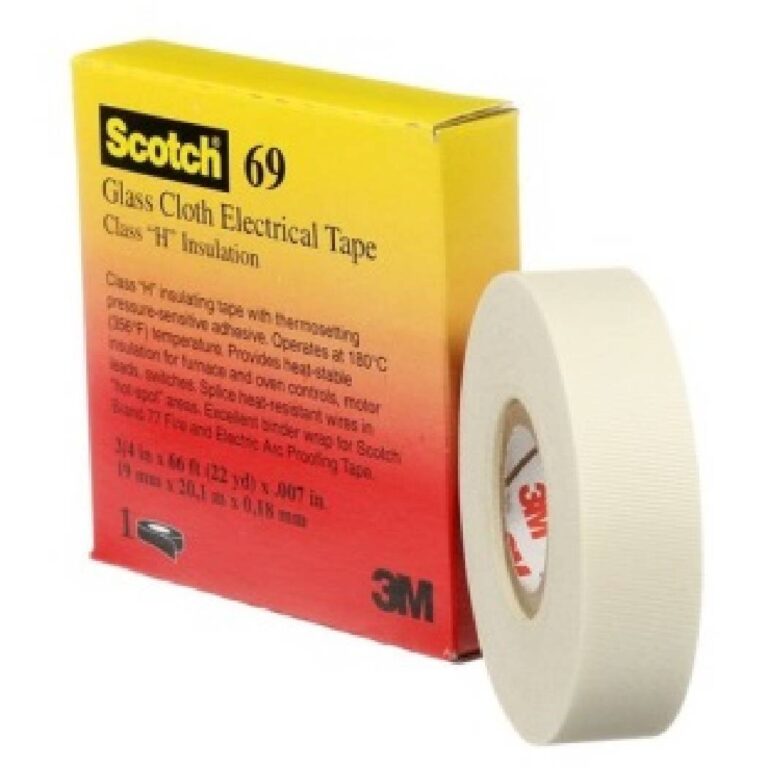

Product: 3M™ Glass Cloth Electrical Tape 69
3M™ Glass Cloth Electrical Tape 69
Highlights
- Thermosetting, silicon adhesive provides an increased bond at high temperatures
- Glass cloth backing optimally resists resist shrinking and burning
- Used as a coil cover, anchor, banding, core, layer and crossover insulation
- Printable and provides high mechanical strength and excellent performance by withstanding high temperatures
- Withstands a temperature range of 32 to 392 °F (0 to 200 °C)
- UL Listed, Mil-I-19166C, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Glass Cloth Electrical Tape 69 is a premium grade, edge tear resistant, electrical tape. This printable tape has a non corrosive adhesive and offers solvent resistant protection. It is used as a coil cover, an anchor, a banding, a core, a layer and a crossover insulator. The flame retardant tape is suitable for 600V rated, dry location application motors and transformers.
3M™ Glass Cloth Electrical Tapape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive that offers excellent bonding once adhered. This conformable tape has a glass cloth backing that resists rotting and shrinking while providing excellent stability. It withstands a temperature range of 32 to 392 °F (0 to 200 °C). UL Listed, Mil I 19166C, CSA Certified and RoHS 2011/65/EU Compliant.
| Adhesive Type | Silicone |
|---|---|
| Backing (Carrier) Material | Glass cloth |
| Backing (Carrier) Thickness (Metric) | 0.125 mm |
| Brands | 3M™ |
| Dielectric Strength | 3,000 V |
| Electrolytic Corrosion Factor | 0.9 |
| Elongation at Break | 5.0 % |
| Insulation Resistance | 4.8 x 10^4 megohms |
| Maximum Operating Temperature (Celsius) | 200 ℃ |
| Overall Length (Metric) | 32.9 Metre, 20.1 Metre, 20.15 Metre |
| Overall Width (Metric) | 12.7 mm, 19.05 mm, 9.53 mm, 25.4 mm, 6.35 mm |
| Product Colour | White |
| Shelf Life | 5 Year |
| Total Tape Thickness without Liner (metric) | 0.178 mm |
