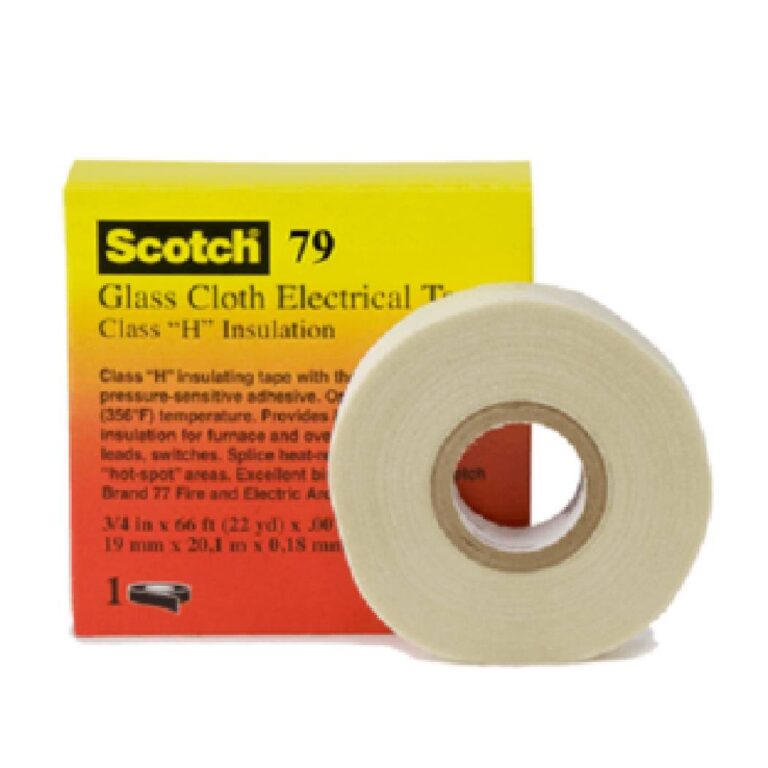

Product: 3M™ Glass Cloth Electrical Tape 79
3M™ Glass Cloth Electrical Tape 79
Highlights
- Pressure-sensitive, acrylic adhesive offers optimized adherence
- Glass cloth backing ensures maximum stability
- Designed for coils/transformers and motor applications
- Printable and has the ability to absorb resin and varnishes
- Withstands a temperature range of 32 to 302 °F (0 to 150 °C)
- Highly conformable and resists solvents
- UL Listed and RoHS 2011/65/EU Compliant
3M™ Glass Cloth Electrical Tape 79 is a printable tape used in coils/transformers and motor applications. It includes an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold downs, end turns and lead anchors, as well as connections. This tape is 600V rated and withstands a temperature range of 32 to 302 °F (0 to 150 °C).
3M™ Tape 79 has a pressure sensitive, acrylic adhesive that offers optimized adherence and resists edge tears. This conformable tape is solvent resistant and has a glass cloth backing that will not shrink, burn or rot while ensuring maximum stability. The printable tape is designed for banding and strapping applications. It provides excellent absorption of varnishes and resin. UL Listed and RoHS 2011/65/EU Compliant.
| Adhesive Type | Acrylic |
|---|---|
| Brands | 3M™ |
| Overall Length (Imperial) | 60 yd |
| Overall Length (Metric) | 54.8 m |
| Overall Width (Imperial) | 0.5 in, 0.375 in, 0.75 in, 1 in |
| Overall Width (Metric) | 12.7 mm, 9.53 mm, 19.05 mm, 25.4 mm |
| Product Color | White |
| Total Tape Thickness without Liner (Imperial) | 7 mil |
| Total Tape Thickness without Liner (Metric) | 0.178 mm |
