Product: 3M™ Polyester Film Electrical Tape 56

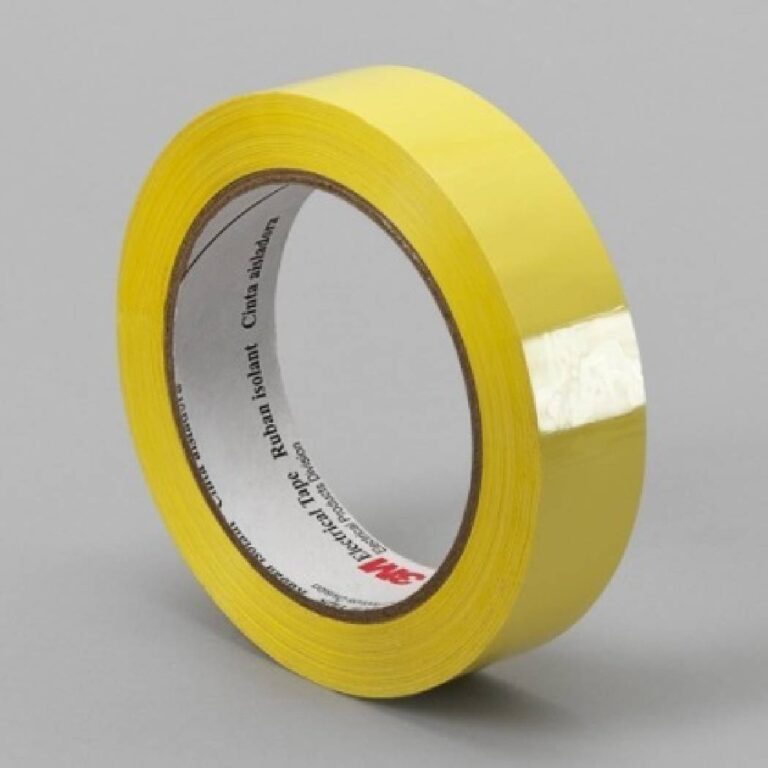

3M™ Polyester Film Electrical Tape 56
Highlights
- Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
- Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
- Suitable for use as a coil cover and as layer insulation
- Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant
- UL Listed and RoHS 2011/65/EU Compliant
3M™ Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
3M™ Polyester Film Electrical Tape 56 is highly conformable with a thermosetting, rubber adhesive. This tape has a polyester film backing and offers excellent resistance to chemicals, solvents, moisture, abrasion and cut through. UL Listed and RoHS 2011/65/EU Compliant.
| Adhesive Type | Thermosetting Rubber |
|---|---|
| Backing (Carrier) Material | Polyester |
| Brands | 3M™ |
| Dielectric Strength | 5,500 V, 5,000 V |
| Electrolytic Corrosion Factor | 1.0 |
| Elongation at Break | 100.0 % |
| Insulation Resistance | 1 x 10^6 megohms |
| Maximum Operating Temperature (Celsius) | 130 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 266 ℉ |
| Minimum Operating Temperature (Celsius) | 0 ℃ |
| Minimum Operating Temperature (Fahrenheit) | 32 ℉ |
| Overall Length (Imperial) | 72 yd |
| Overall Length (Metric) | 65.8 m, 65.83 m |
| Overall Width (Imperial) | 0.38 in, 0.5 in, 15.5 in, 0.75 in, 0.25 in, 1 in, 24 in |
| Overall Width (Metric) | 9.5 mm, 12.7 mm, 393.7 mm, 19 mm, 6.35 mm, 25.4 mm, 609.6 mm |
| Product Color | Yellow |
| Rolls per Case | 96 , 72 , 48 , 144 , 36 |
| Specifications Met | CSA Certified, UL Recognized, RoHS 2011/65/EU |
| Total Tape Thickness without Liner (Imperial) | 2.5 mil |
| Total Tape Thickness without Liner (Metric) | 0.064 mm |
