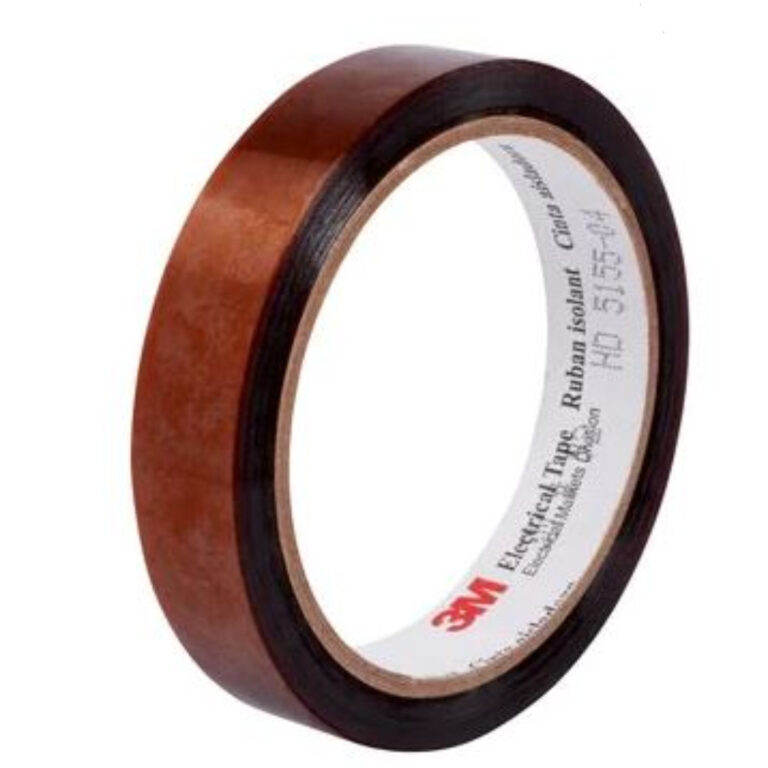

Product: 3M™ Polyimide Film Electrical Tape 92-AMBER-3/4″X36YD, Amber, Silicone Adhesive, 1 mil film, 3/4 in x 36 yd (19,05 mm x 33 m), 12 per case
3M™ Polyimide Film Electrical Tape 92-AMBER-3/4″X36YD, Amber, Silicone Adhesive, 1 mil film, 3/4 in x 36 yd (19,05 mm x 33 m), 12 per case
Highlights
- Polyimide backing provides exceptional heat resistance
- Thermosetting, silicone adhesive is smooth and has a uniform that eliminates bare spots and lumps
- Suitable for coils, harnesses and capacitor applications
- Printable tape on a 3-in core
- Withstands a temperature range of 32 to 356 degrees F (0 to 180 degrees C)
- Flame-retardant
- UL Listed
3M™ Tape 92 is a high-performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame-retardant tape withstands a temperature range of 32 to 356 degrees F (0 to 180 degrees C).
3M™ Polyimide Film Electrical Tape 92 is used as a solder masking tape in a printed circuit board assembly. The tape has a smooth and uniform thermosetting silicone adhesive coating that offers good adherence while eliminating bare spots and lumps. UL Listed and RoHS 2011/65/EU Compliant.
| Adhesive Material | Silicone |
|---|---|
| Adhesive Type | Silicone |
| Backing (Carrier) Material | Polyimide Film |
| Brands | 3M™ |
| Electrolytic Corrosion Factor | 1 |
| Elongation at Break | 55 Percent |
| Insulation Resistance | 1 x 10^6 megohms |
| Maximum Operating Temperature (Celsius) | 180 ℃ |
| Overall Length (Metric) | 33 Metre |
| Overall Width (Metric) | 19.05 mm |
| Product Colour | Amber |
| Total Tape Thickness without Liner (metric) | 0.07 mm |
