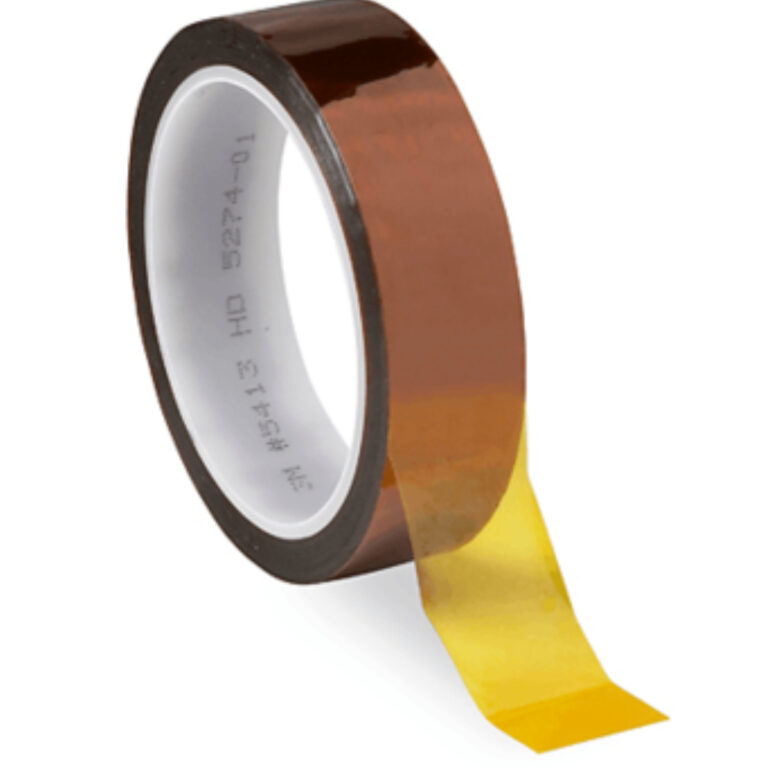

Product: 3M™ Polyimide Film Tape 5413
3M™ Polyimide Film Tape 5413
Highlights
- The DuPont™ Kapton® polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures
- Is dimensionally stable at high temperatures, which prevents rework, enabling high productivity
- Is flame retardant, chemical and radiation resistant which protects surfaces to help reduce replacement costs
- The silicone adhesive’s high temperature performance reduces adhesive transfer which helps to eliminate cleaning, enabling high productivity
- Available on cardboard or polyethyelene core
3M™ Polyimide Film Tape 5413 with DuPont™ Kapton® polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications.
“Halogen Free” refers to the International Electrochemical Commission’s Definition, IEC 61249-2-21, which sets the limits of: 900 ppm maximum chlorine; 900 ppm maximum bromine; 1500 ppm maximum total halogens
| Adhesive Type | Silicone |
|---|---|
| Backing (Carrier) Material | Polyimide Film |
| Brands | 3M™ |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 33 m |
| Overall Width (Imperial) | 0.625 in, 0.125 in, 0.5 in, 0.875 in, 0.25 in, 0.375 in |
| Overall Width (Metric) | 15.9 mm, 3.18 mm, 12.7 mm, 22.23 mm, 6.35 mm, 9.5 mm |
| Product Color | Amber |
| Total Tape Thickness without Liner (Imperial) | 2.7 mil |
| Total Tape Thickness without Liner (Metric) | 0.069 mm |
