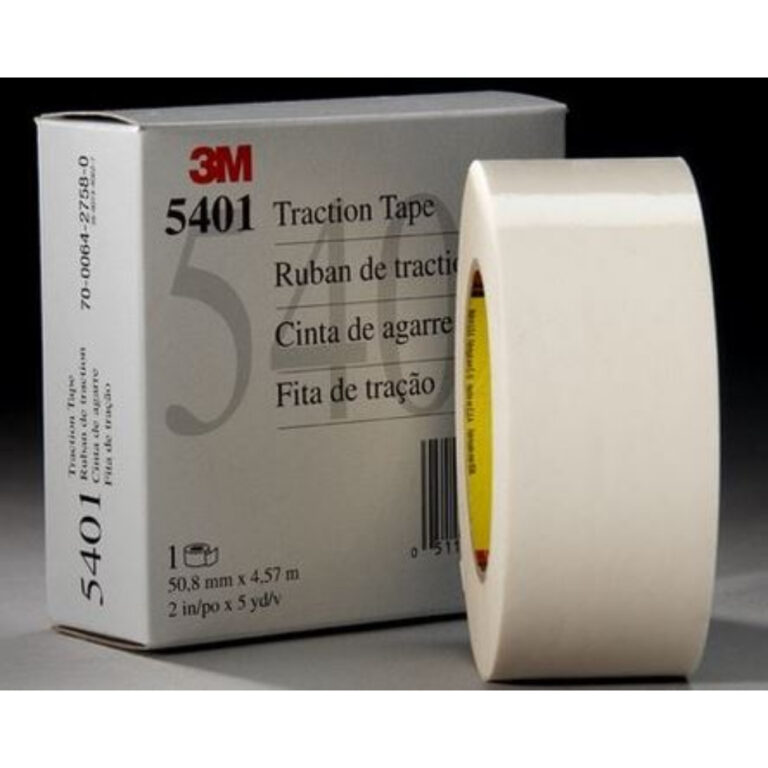

Product: 3M™ Traction Tape 5401
3M™ Traction Tape 5401
Highlights
- Silicone backing provides traction for material passing over rollers commonly used in printing processes
- Fiberglass reinforcing provides a durable and conformable product for wrapping applications
- Adhesive removes cleanly and easily, leaving behind minimal residue and ensuring a quick clean-up process
- Provides non-stick surface when used on rollers in manufacturing processes
- Silicone adhesive provides long aging, good holding power, for a wide range of operations
Designed for used on web rollers, 3M™ Traction Tape 5401 provides a high coefficient of friction for tracking and tension of web material from start-up through wind-up. In addition, this tape provides a non-stick surface with easy release properties that won’t interfere with printing, converting or other web processes.
Provide traction for printing, converting and web processes
Provide Traction Over Rollers
Constructed from a tan glass cloth reinforced backing and coated with a pressure-sensitive silicone adhesive, our 3M™ Traction Tape 5401 (PDF, 38 Kb) is an ideal choice for traction applications common in printing processes, such as flexo-printing. This tape helps provide traction for material passing over rollers, while also providing a non-stick surface. The long-lasting, silicone adhesive adheres well to most surfaces and removes cleanly with minimal clean-up. 3M™ Traction Tape 5401 performs in temperatures up to 300°F, allowing it to be used in high-temperature applications.
Recommended Applications
- Wrapping rollers for printing, converting and web processes
| Adhesive Type | Silicone |
|---|---|
| Anti-slip Material | Silicone |
| Back Side Adhesive Thickness (Imperial) | 1.3 mil |
| Back Side Adhesive Thickness (Metric) | 0.2 mm |
| Backing (Carrier) Material | Fiberglass Reinforced Silicone |
| Backing (Carrier) Thickness (Imperial) | 8 mil |
| Backing (Carrier) Thickness (Metric) | 0.2 mm |
| Brands | 3M™ |
| Elongation at Break | 0.07,7 |
| Industries | Print, Paper |
| Maximum Operating Temperature (Celsius) | 148 ℃, 150 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 300 ℉ |
| Minimum Operating Temperature (Celsius) | 0 ℃ |
| Minimum Operating Temperature (Fahrenheit) | 32 ℉ |
| Overall Length (Imperial) | 36 yd, 36.09 yd |
| Overall Length (Metric) | 32.91 m, 32.9 m, 33 m |
| Overall Width (Imperial) | 24 in, 3 in, 1 in, 2 in, 3.937 in |
| Overall Width (Metric) | 609.6 mm, 76.2 mm, 24.5 mm, 50.8 mm, 100 mm |
| Product Color | Tan |
| Shelf Life | 18 Month, 36 Month |
| Specifications Met | ISO 9001 |
| Tensile Strength (Imperial) | 220.0 lb/in |
| Tensile Strength (Metric) | 385.3 N/100mm, 3,853 N/100mm, 385.3 N/cm |
| Total Tape Thickness without Liner (Imperial) | 9.3 mil |
| Total Tape Thickness without Liner (Metric) | 0.24 mm |
| Units per Case | 1.0,12.0,3.0,4.0,6.0 |
